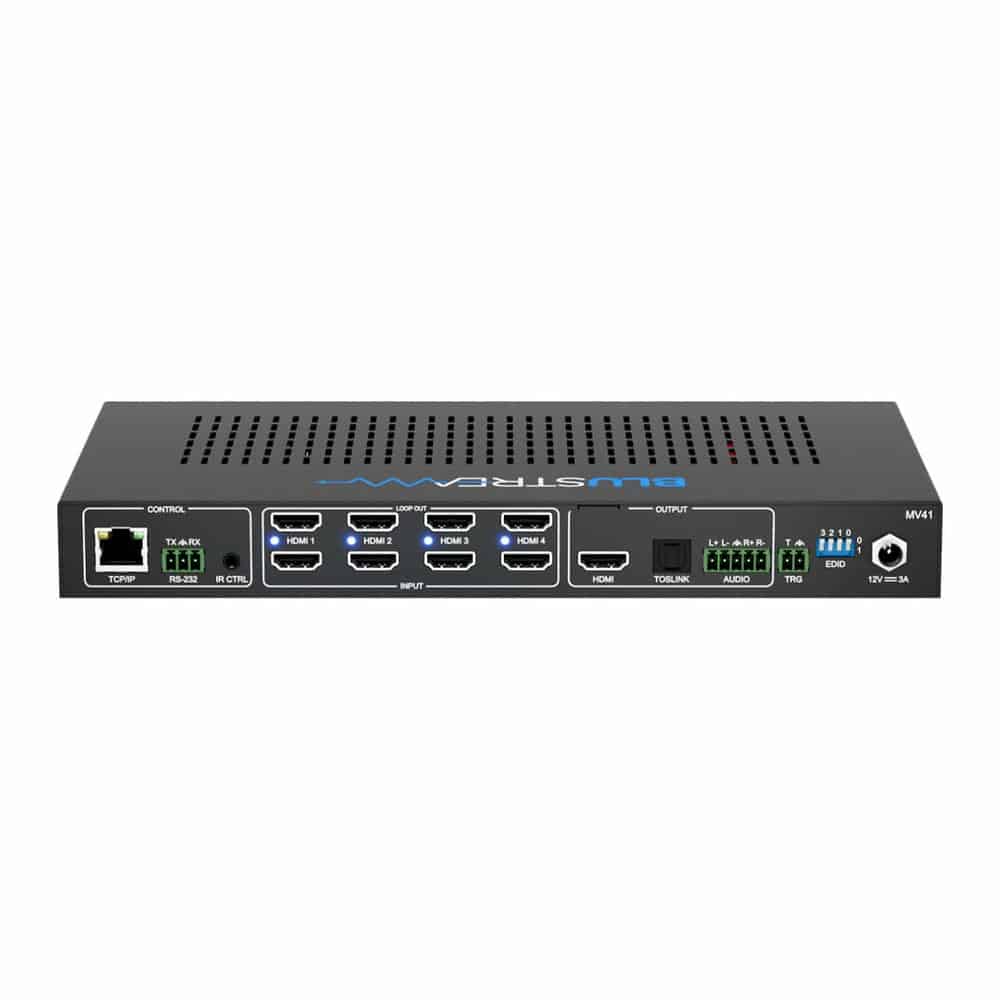

Bluestream MV41 4-Way Multiview HDMI Switcher
(image for) Bluestream MV41 4-Way Multiview HDMI Switcher
(image for) Bluestream MV41 4-Way Multiview HDMI Switcher
  • In Stock:  10

Bluestream MV41 4-Way Multiview HDMI Switcher

£1,032.58
(0  Reviews) Add Your Review
Product Overview 4-Way Multiview HDMI Switcher The Bluestream MV41 is an advanced 4x1 HDMI multi-view switcher. The MV41 allows up to 4x HDMI 2.0 sources to be output to a single display at the same time, with pre-defined and customisable video layouts, and seamless switching. The MV41 also...
Add to Cart:
  • Manufactured by: Blustream
  • This product was added to our catalog on .

Product Overview

4-Way Multiview HDMI Switcher

The Bluestream MV41 is an advanced 4x1 HDMI multi-view switcher. The MV41 allows up to 4x HDMI 2.0 sources to be output to a single display at the same time, with pre-defined and customisable video layouts, and seamless switching. The MV41 also supports HDMI loop-through for all HDMI inputs allowing cascading of original source signals for further distribution.

The MV41 features 2ch PCM and Optical S/PDIF audio breakout, with third party control achievable from the web-GUI, TCP/IP, RS-232, IR remote control, of from the front panel buttons.

The multiple configuration and connectivity options make the MV41 suitable for both residential and commercial installations



There are currently no product reviews.

Features

• Advanced 4x HDMI input switch with multi-view HDMI output
• 4x HDMI loop out for integrating local displays or cascading to multiple devices
• Supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts with pre-defined and customisable configurations
• Supports video down-scaling and HDR to SDR conversion on HDMI multiview output
• Supports HDMI2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio, and optical digital outputs concurrently
• Analogue L/R audio outputs support both balanced and unbalanced audio signals
• Control via front panel, IR, RS-232, TCP/IP, web-GUI and 12V trigger
• Supplied with Blustream 5V IR receiver and remote control
• 3rd party drivers available for all major control brands
• HDCP2.3 compliant with advanced EDID management

Connectivity


• Video Input Connectors: 4 x HDMI Type A, 19-pin, female
• Video Output Connectors: 5 x HDMI Type A, 19-pin, female
• Audio Output Connectors: 1 x Optical (S/PDIF), 1 x 5-pin Phoenix connector
• TCP/IP Control: 1 x RJ45, female
• RS-232 Port: 1 x 3-pin Phoenix connector
• 12V Trigger Port: 1 x 2-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• Firmware Upgrade: 1 x Micro-USB UART port
