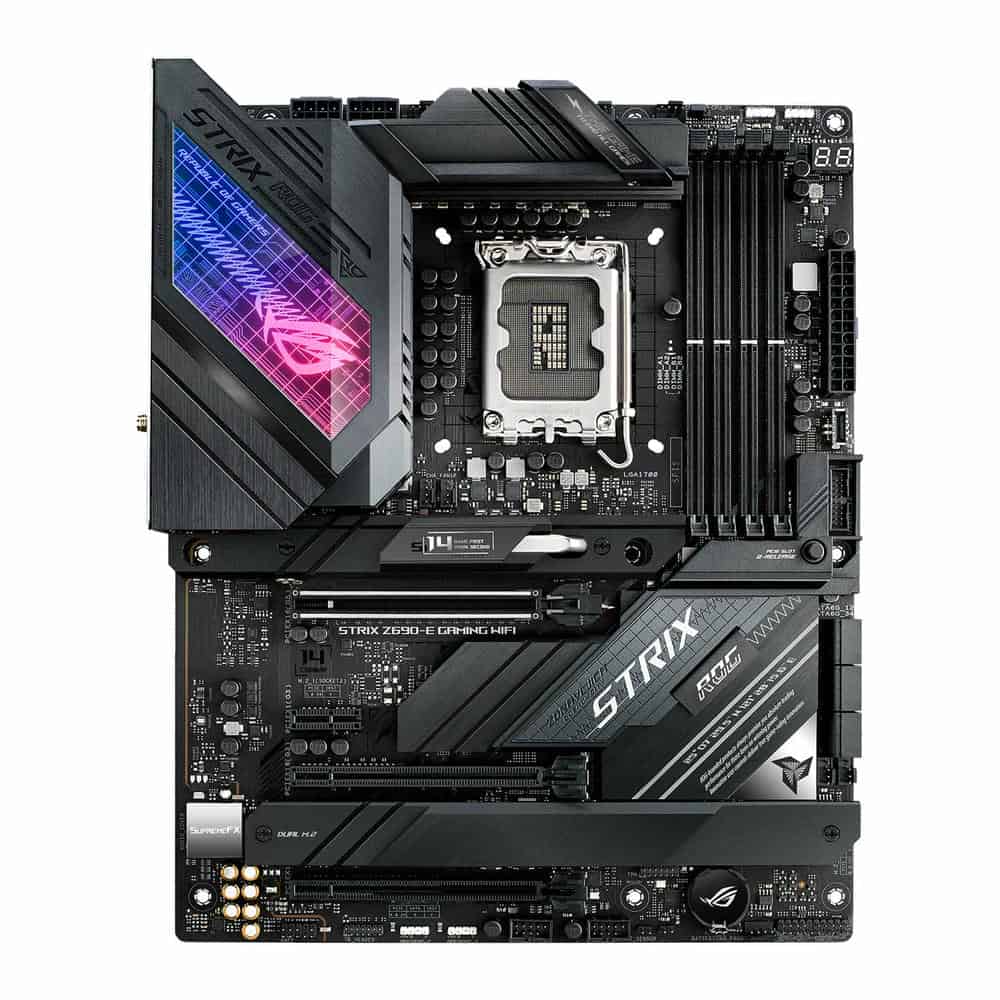

ASUS Intel Z690 ROG STRIX Z690-E GAMING WIFI DDR5 PCIe 5.0 ATX

ROG Strix Z690-E Gaming WiFi Intel 12th Generation ATX Motherboard

GET READY FOR THE NEWEST GENERATION

 Introducing the newest series of Z690 motherboards – ROG Strix Z690-E Gaming WiFi from ASUS. ROG Strix Z690-E Gaming WiFi puts 12th Gen Intel® Core™ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® Z690

Chipset

LGA 1700

CPU Socket

12th Gen Intel®

Compatible Processors

ATX

Form Factor

Teamed Power Architecture and Power Solution

1. Supports the latest 12th Gen Intel® Processors
2. Dual Channel Memory, Max. 128GB, DDR5 / Supports Intel® XMP and OPTIMEM II
3. 18+1 Power Stages
4. Expansion Slots:
• 1 x PCIe 5.0 x16 SafeSlot (x16 or x8) CPU   |   • 1 x PCIe 3.0 x1 Slot Chipset
• 1 x PCIe 4.0 x16 Slot (x4 or x4/x4) Chipset   |   • 1 x PCIe 3.0 x16 Slot (x4) Chipset
5. Three M.2 Onboard Slots:
• 1 x M.2 (PCIe5.0 x4)   |   • 1 x M.2 (PCIe4.0 x4)   |   • 1 x M.2 (PCIe 4.0 x4 & SATA)
2 x M.2 Slots on ROG Hyper M.2 Card / (PCIe4.0 x4)

Experience DDR5 Overclocking Strength

Push frequency and timings to the max

ROG Strix Z690-E Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancellation helps ensure crystal-clear in-game communication.

A DEDICATED CIRCUIT FOR DDR5 MEMORY

Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage special onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

High-quality components

 1. 18+1 power stages and low-side MOSFETS
2. Alloy chokes and durable capacitors
3. 8+8-pin PROCOOL II power connectors
4. DIGI+ power control (VRM)
5. Multi-layered 6 layer PCB


AI Overclocking at a Glance

Intelligent Motherboard

ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition. Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.

Designed by Experts

For each new motherboard platform, ROG in-house experts painstakingly profile thousands of processors and system configurations to hone the highly advanced algorithm of AI Overclocking.

Predictive Edge

The algorithm analyses your CPU and system cooling, and then defines optimal voltage and frequency settings. Predicted values can be applied manually or engaged automatically to save time.

Real-time Adjustments

Once activated, the AI Overclocking utility continually tracks vital system stats, making profile adjustments to account for changes in system usage or ambient temperature.

 Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller.

Top-level PC Performance Demands Exceptional Cooling

Cooling innovation

The ROG Strix Z690-E Gaming WiFi is armed with Two thick VRM heatsinks connected by a heat pipe and bonded to a pre-mounted metal I/O shield provide ample surface area and mass to handle the power needs of high-performance 12th Gen Intel processors. High-grade thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.
An M.2 heatsink with a direct-contact heat pipe delivers ample surface area, enabling optimal running temperatures for PCIe 5.0 M.2 NVMe drives, even when airflow is restricted. The M.2 heatsinks keep the M.2 SSDs at optimum operating temperature for consistent performance and reliability. The integrated M.2 backplate help ensure that high-performance drives deliver peak performance, even when airflow is restricted.

1. Integrated I/O Cover & VRM Heatsinks
2. Thermal Pads
3. M.2 Combo-Sink
4. Two M.2 Heatsinks
5. Two M.2 Backplates

Outshine the Competition

Personalize and gear up with ROG components

 In addition to elite performance, ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs and third-party lighting strips that can connect to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Undeniably ROG Strix

 A specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, a pattern of grids and slashes, touches of mirror finish, and a leather ROG logo deliver a variety of carefully crafted surface textures. Last but not least, a distinctive lighting pattern built into the M.2 Combo-Sink finishes off a colorful tour of the ROG worldview.

Expert Thermal Management

Cooling Solution

ROG Strix Z690 motherboards feature comprehensive cooling options that are configurable via the Fan Xpert 4 tool in Armoury Crate or within the UEFI BIOS.

The most comprehensive cooling options ever

 A dedicated pair of PWM/DC fan headers for CPU coolers. A dedicated PWM/DC header for self-contained water-cooling setups.

Create a Fully Customized Gaming Setup

DIY FRIENDLY PCIE SLOT Q-RELEASE

A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device. The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

PCIe Performance

With one PCIe 5.0 M.2 slot delivering twice the speed of PCIe 4.0, two additional slots with PCIe 4.0, and two more 4.0 slots available on the bundled ROG Hyper M.2 Card, ROG Strix Z690-E Gaming WiFi leverages mighty CPU and chipset bandwidth to deliver the latest data transfers, Intel NVM Express® RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs.

Supreme Networking Capability

WIFI 6E (802.11 AX)

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

Intel® 2.5 GB Ethernet

Onboard 2.5 Gb Ethernet gives your wired connection a boost, delivering up to 2.5X the speed of standard Ethernet connections for faster file transfers, low-lag gaming and high-resolution video streaming.

Fine-quality Components for Exceptional Clarity & Fidelity

Unique Design
